WiFi relej za upravljanje rasvjetom i uređajima s praćenjem potrošnje

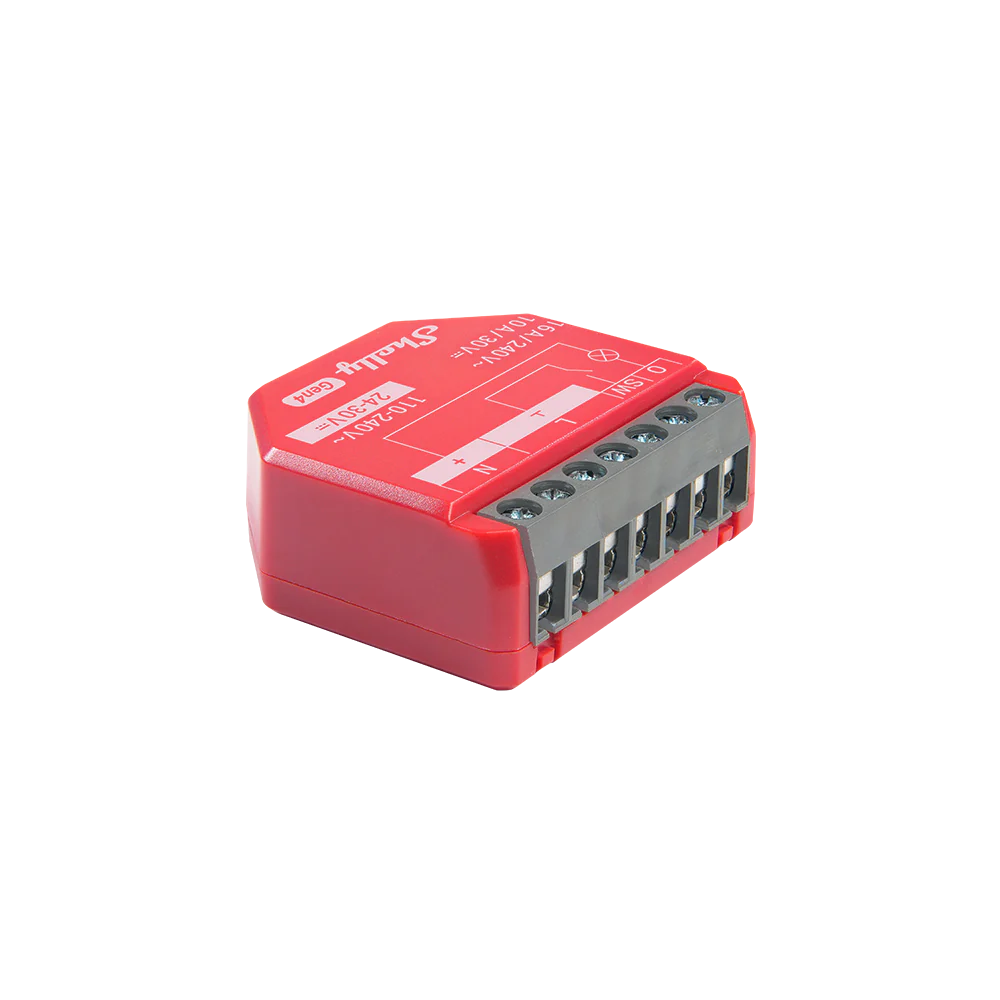

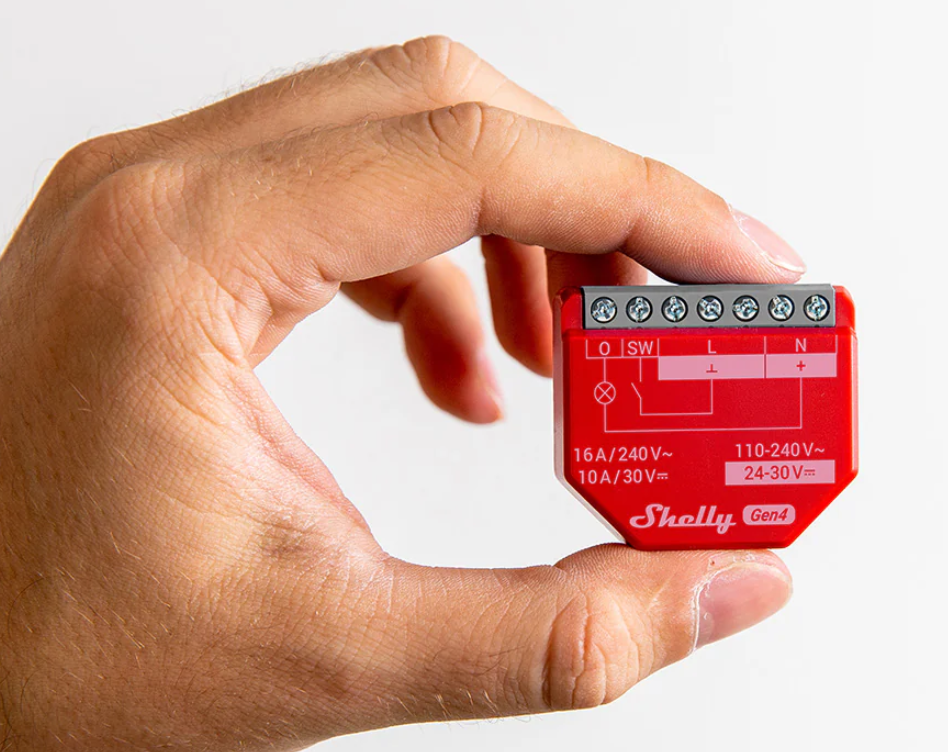

WiFi Relej s praćenjem potrošnje
Upravljajte te pratite potrošnju širokom rasponom kućanskih aparata i uredske opreme (svjetla, dalekovodi, garažna vrata, zavjese, sigurnosni sustavi, radijatori grijanja, klima uređaji itd.) s bilo kojeg mjesta pomoću najmanjeg relejnog prekidača kojim upravlja WiFi, uz Bluetooth opciju.
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 37x42x16 mm / 1.46×1.65×0.63 inch |
| Weight: | 27 g / 0.95 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | Wall console |
| Shell material: | Plastic |
| Shell color: | Red |
| Terminals color: | Grey (Mouse Grey) |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: |
|
| Power consumption: | < 1 W |
| Neutral not needed: | No |
| External protection: | Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
| Output circuits ratings | |
| Max. switching voltage: |
|
| Max. switching current: |
|
| Sensors, meters | |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Internal-temperature sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2412 – 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 5.0 |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
40,00 € Cijena (10.09.2026.) : 40,00 € Sidrena (bazna) cijena je redovna maloprodajna cijena koja je za ovaj proizvod vrijedila na navedeni referentni datum. Služi potrošaču za usporedbu s aktualnom cijenom, sukladno odlukama Vlade RH i Zakonu o zaštiti potrošača. Nije akcijska cijena niti najniža cijena u zadnjih 30 dana.
UsporediWiFi Relej s praćenjem potrošnje
Upravljajte te pratite potrošnju širokom rasponom kućanskih aparata i uredske opreme (svjetla, dalekovodi, garažna vrata, zavjese, sigurnosni sustavi, radijatori grijanja, klima uređaji itd.) s bilo kojeg mjesta pomoću najmanjeg relejnog prekidača kojim upravlja WiFi, uz Bluetooth opciju
Shelly 1PM karakteristike
- ugrađeni web poslužitelj

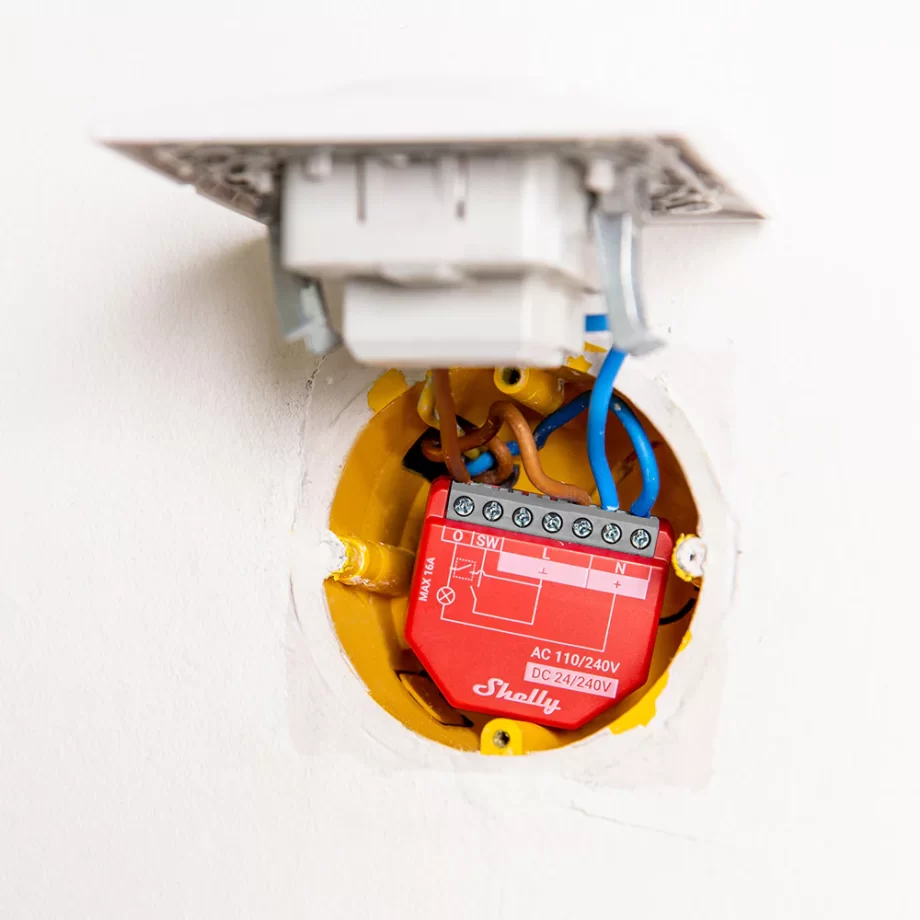

- dizajniran da može stati u vrlo mali prostor, poput zidnih nosača, električnih upravljačkih ploča itd.
- može funkcionirati kao samostalni uređaj, kao dodatak kontroleru kućne automatizacije ili se može koristiti kao druga komponenta sustava automatizacije
- može se koristiti za električne strujne krugove (do 3,5 kW)
- s nadzorom potrošnje energije, preopterećenjem te zaštitom temperature
- Nije potreban HUB – spaja se direktno na ruter
- Bluetooth za lakšu i bržu integraciju
- Praćenje potrošnje
- Novi i brži ESP32 procesor
- Opcionalne mjs skripte
| Proizvođač | Shelly |
|---|
