Profesionalni wifi relej za šinu – 4 kanala
| Power supply AC | 110-230V ±10%, 50/60Hz |
|---|---|
| Power supply DC | No |
| Dry contacts | No |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| Working without a neutral line | No |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts(mJs) | Yes |
| Channels | 4 Channel |
| Maximum load | up to 16A per channel with up to 40A for the whole device |
| Operational temperature | 0 to + 40 °C |
| Device power consumption | < 4 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| Wireless/WiFi Protocol | 802.11 b/g/n |
| Radiofrequency | 2412 – 2484 MHz |
| Radio signal power | 1mW |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| Size | 90mm x 52mm x 57mm |
170,00 €
Usporedi4 Kanalni relej za šinu – 4 kanala po 16A, LAN, Wifi, Bluetooth povezivost, s praćenjem potrošnje
Upravljajte širokim rasponom kućanskih aparata i uredske opreme (svjetla, garažna vrata, zavjese, sigurnosni sustavi, radijatori grijanja, klima uređaji itd.) S bilo kojeg mjesta pomoću najnovije verzije profesionalnog pametnog releja

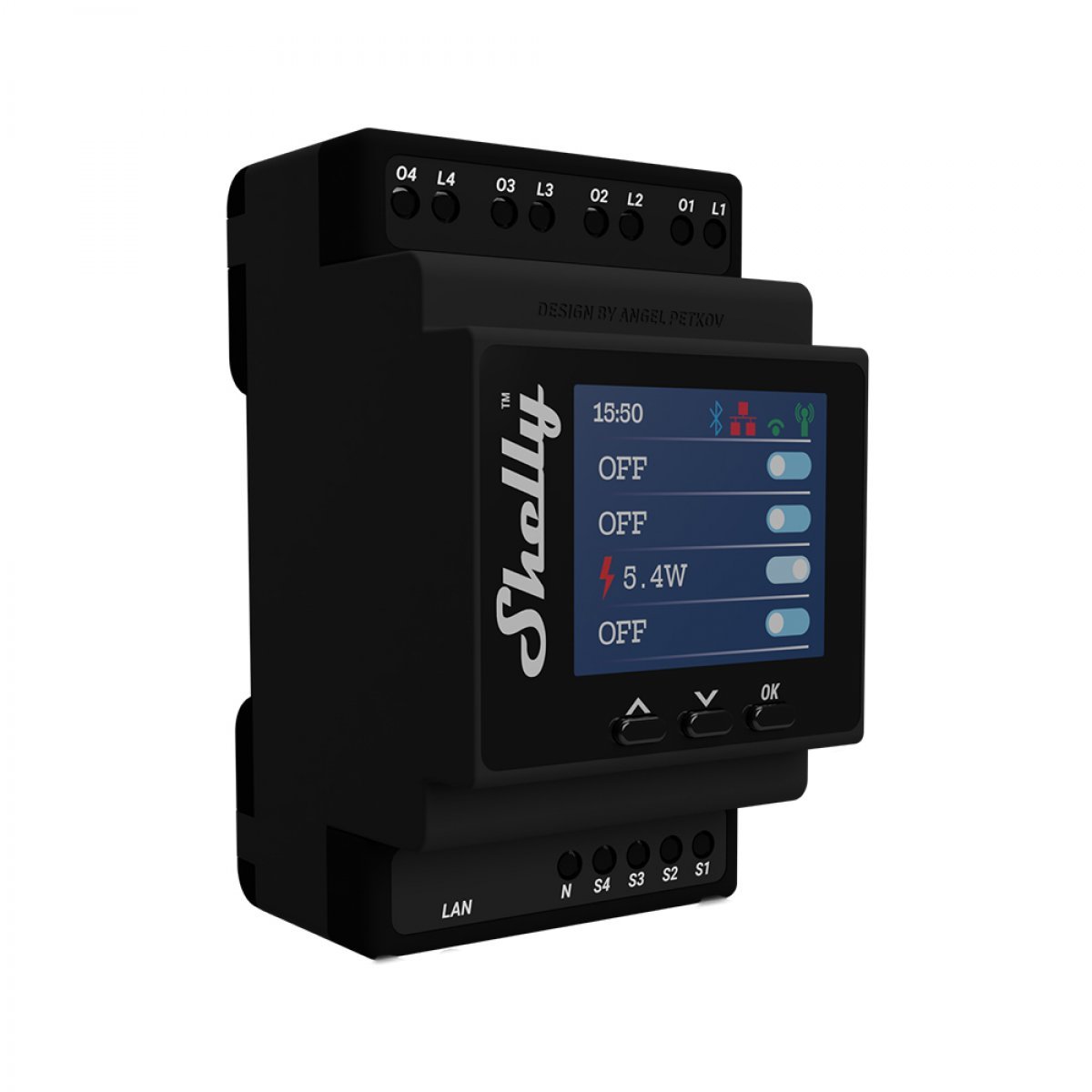

Shelly Pro 4PM Karakterisitke
- LAN, WiFi, Blueetooth
- 4 izlaza – 16A svaki, uz maksimalno opterećenje 40A
- Praćenje potrošnje
- Novi i brži ESP32 procesor
- Opcionalne mjs skripte
- Dizajniran za montiranje na šinu
| Boja | Crna |
|---|---|
| Proizvođač | Shelly |
