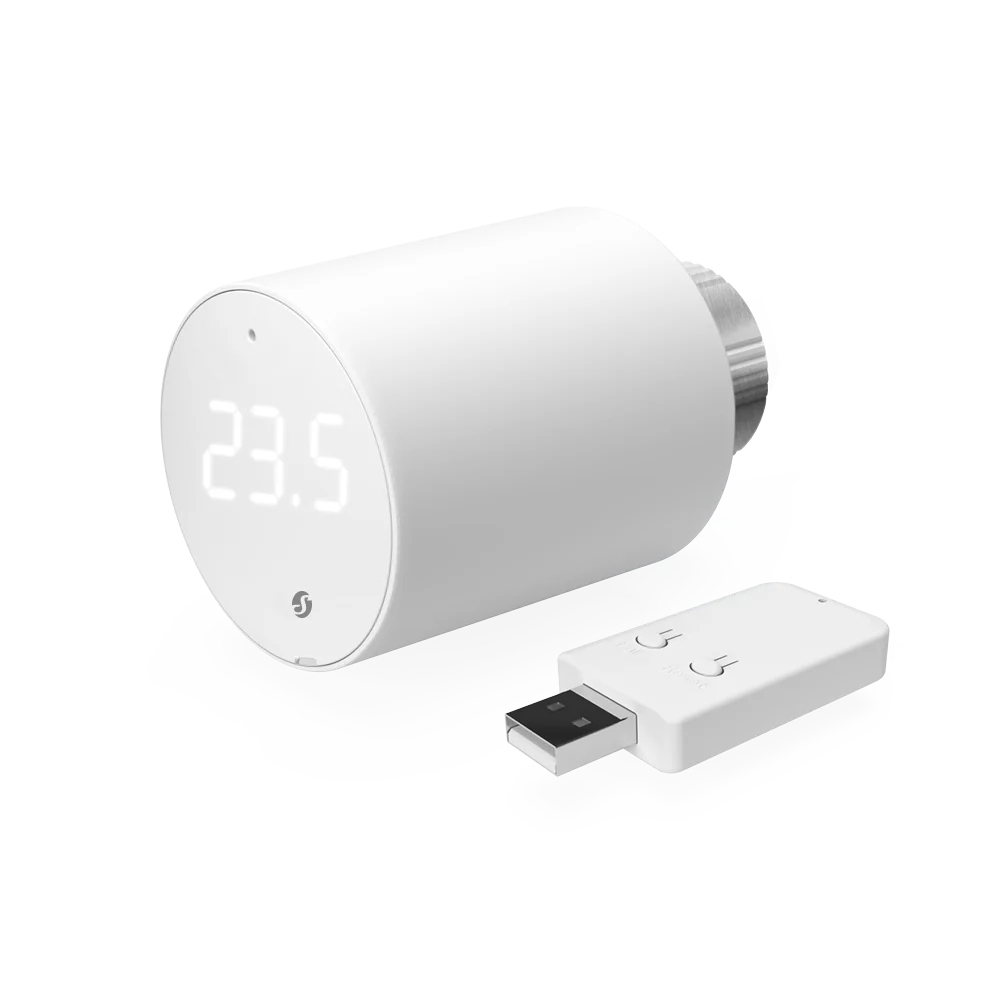

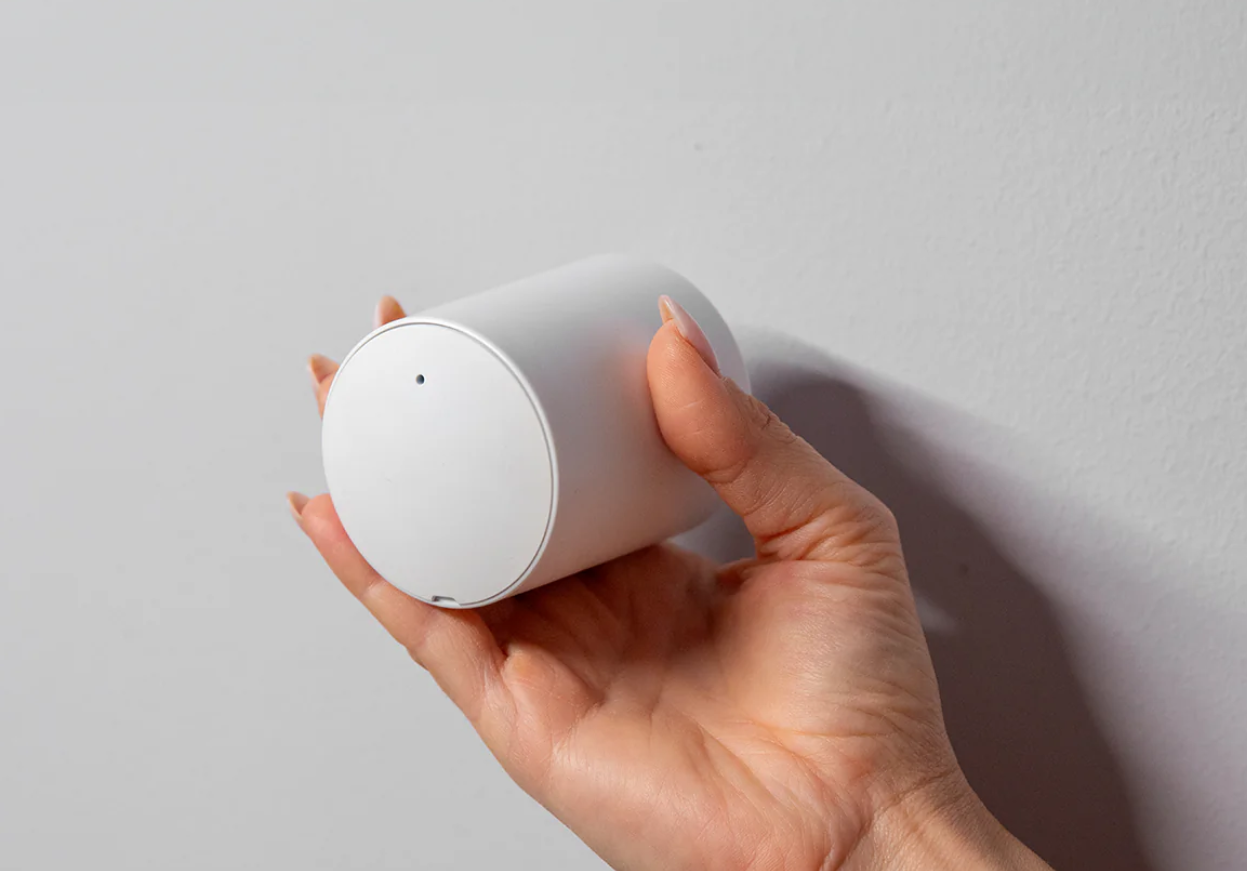

Bluetooth Termostatski radijatorski ventil
Doživite neusporedivu udobnost i učinkovitost s pametnom termostatskom glavom za radijatore. Dizajnirana za savršeno uklapanje u vaš interijer, pruža preciznu kontrolu klime. Potrebna je i uključena pristupna točka (gateway) u pakiranju.
| Size (HxD): | 78 x Ø54 mm / 3.07xØ2.13 in |
| Weight: | 107 g / 3.77 oz |
| Mounting: | M30 / 15 |
| Mounting ring material: | Nickel-plated brass |
| Shell material: | Plastic |
| Shell color: | White |
| Environmental | |
| Ambient working temperature: | -20°С to +60°С / 68°F to 140°F |
| Humidity: | 25% to 80% RH |
| Pollution degree: | 2 |
| Electrical | |
| Power supply: | 2x AA, 1.5 V (included) |
| Estimated battery life: | up to 2 years |
| Sensors, meters | |
| Temperature sensor: | Yes |
| Radio | |
| Bluetooth | |
| Protocol: | 5 (LE) |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 8 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depends on local conditions) |
| Zigbee | |
| Protocol: | 802.15.4 |
| RF bands: | 2405 to 2480 MHz |
| Max. RF power: | < 8 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depends on local conditions) |
| Firmware capabilities | |
| Schedules: | Yes |
100,00 €
UsporediTermostatski radijatorski ventil
Visoko učinkovito upravljajte grijanjem te pritom uštedite na energiji i računima
- Bluetooth upravljanje i Wi-Fi s pristupnom točkom (gateway)
- 2×1,5 V AA baterije (uključene)
- Precizna kontrola temperature (podešavanje ±0,1 °C)
- Boost način za brzo zagrijavanje prostora
- Pametni rasporedi: Postavite dnevne rasporede kako biste održali dom toplim i uštedjeli energiju
- Podrška za vanjske senzore (kompatibilno s Shelly BLU H&T, Shelly BLU Door/Window senzorima, povezano putem BLU Gateway Gen3)
- Integracija s većinom sustava pametnih kuća
- Pristupna točka može se priključiti na bilo koji USB napajanje, punjač ili uređaj s USB-A portom (s ocjenom većom od 5 W)

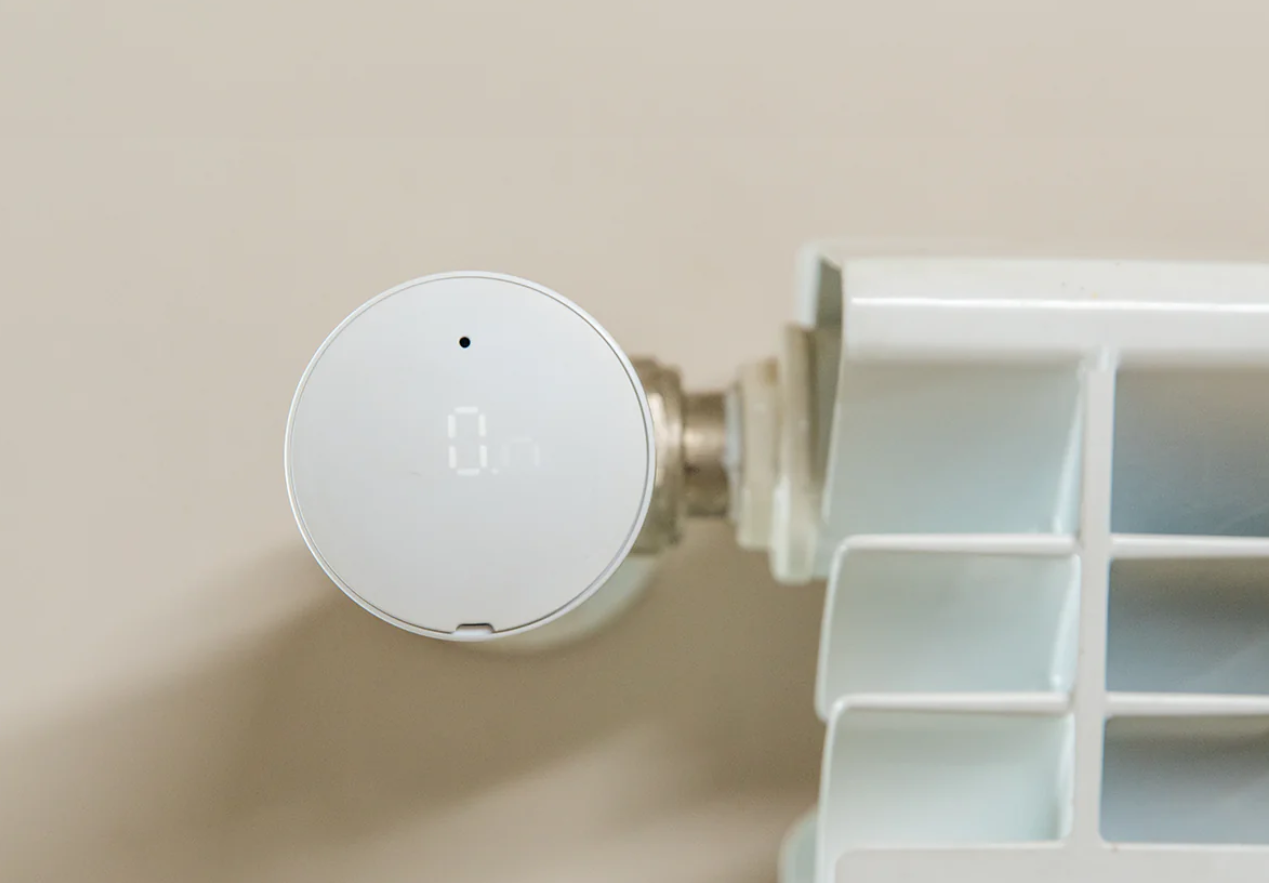

Pretvorite stari radijatorski ventil u pametni u roku od samo dvije minute! TRV Vam nudi mogućnost kontroliranja temperature neovisno gdje se nalazite. Moguće je dodati raspored ili kreirati scene na temelju sata te izlaska/zalaska sunca. Osigurajte sebi i Vašoj obitelji poboljšanu kontrolu grijanja te veći komfor.
| Proizvođač | Shelly |
|---|
